soloVETRO glass wall without vertical frames

soloVETRO ist ein raumhohes Glaswand System für das Büro. Anders als bei herkömmlichen Pfosten-Riegel-Konstruktionen, wird das Glas hier jedoch ausschließlich in horizontal verlaufende Profile gefasst. Vertikal verlaufende Profile gibt es bei dieser Glaswand nicht. Die Glasscheiben werden rahmenlos montiert. Die Glaswand ist so vollständig transparent. Das Design der Wand nimmt sich zurück. Es entstehen Raumgliederungen, passend zur aktuellen Architektur, mit hohen Ansprüchen an die Akustik und damit an die Vertraulichkeit ohne, dass die Transparenz der Organisation eingeschränkt wird.

Glass wall variants

The soloVETRO glass wall offers a single-glazed version and a double-glazed version. Both variants are equipped with safety glass. The single-glazed office glass wall is fitted with 12mm thick laminated safety glass (VSG). It achieves an average sound insulation of approx. 37 dB. The double-glazed glass wall is equipped with two 10mm thick toughened safety glasses and includes a 50mm air space. This construction achieves a high level of sound insulation of approx. 42 dB. Both glass walls have aluminum profiles on the floor and ceiling.

Frameless glass wall advantages

Sound insulation 37 dB with 12 mm glazing
Sound insulation 40 dB with 16 mm glazing
Glazing in VSG quality
Highest possible transparency
Leaf and sliding doors
Electrification possible
Acoustics can be integrated
Combination with solid wall
Glass design as desired

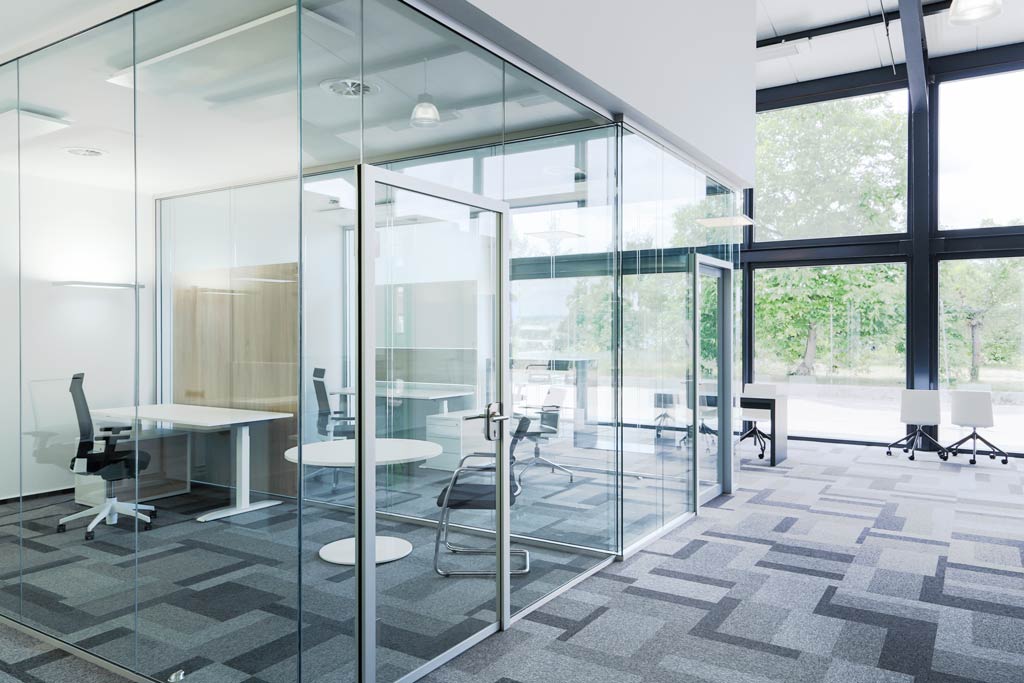

Sound-insulating and transparent glass wall — The frameless glass wall leaves plenty of room for the architecture

Glass-only wall with dry-bonded panes

The vertical edges of the glass panes are polished and are dry-bonded to both glass walls using a special transparent profile. The floor profile for both constructions is 25 mm high, the ceiling profile 40 mm. The single-glazed wall stands in 25 mm wide profiles, the double-glazed glass wall is guided in 80 mm wide profiles. The glass walls are compatible and can be used in close proximity to each other or interlinked.

Sound-insulating glass wall — Glass wall 12 mm VSG

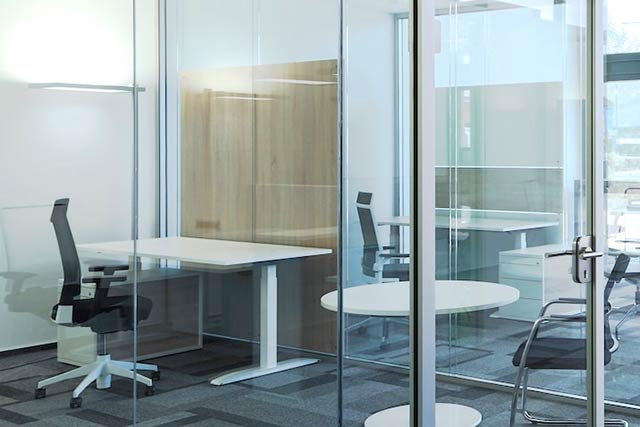

Glass wall without vertical frames — Glass-only wall, single glazed

Frameless glass wall with acoustic element — Glass wall with solid door

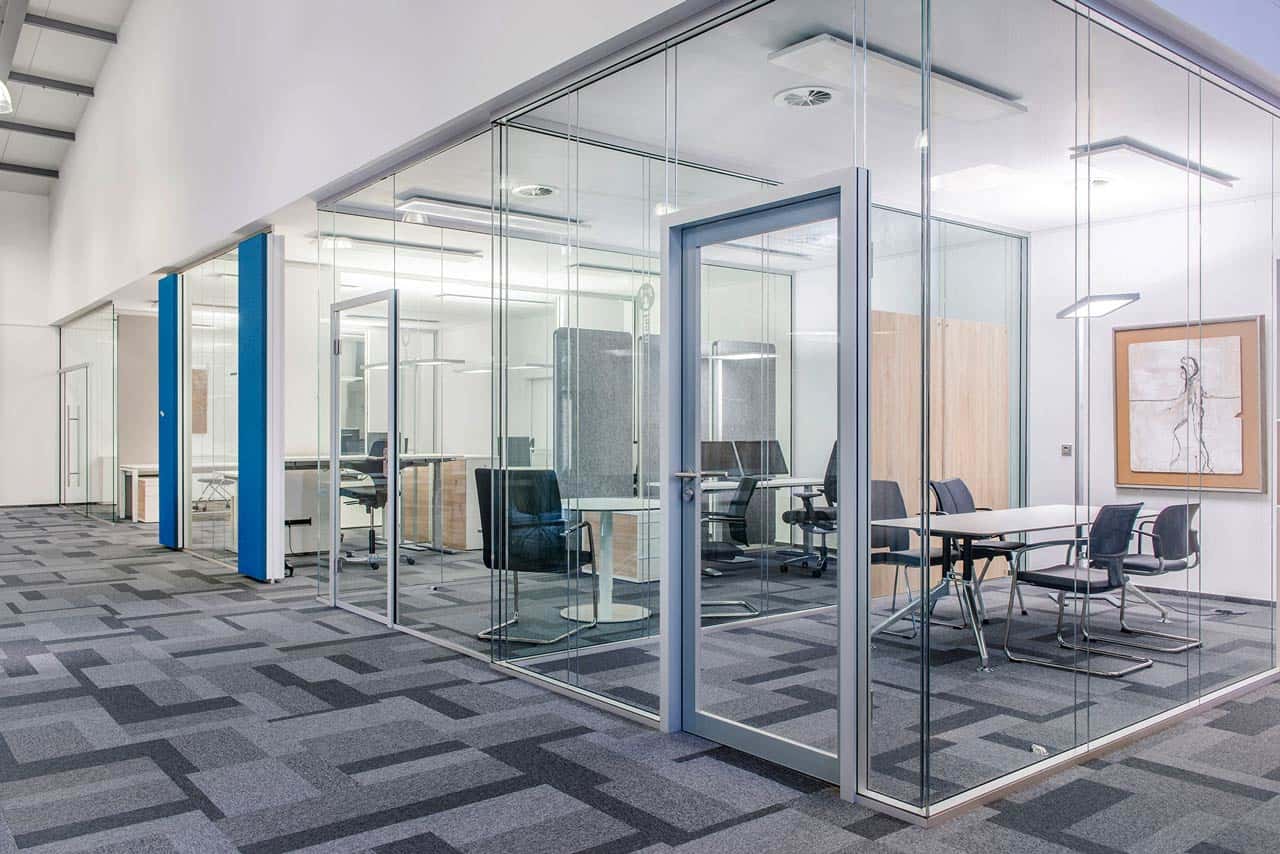

Glazed wall without vertical frames — The soloVETRO glass wall creates confidentiality between rooms. 'Frameless glazing optimizes the visual relationships between employees.

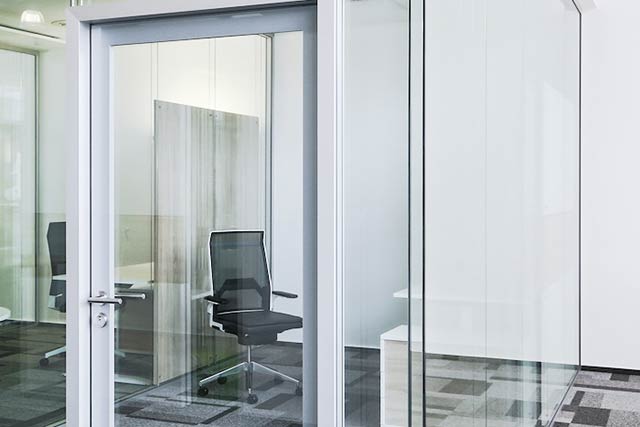

Sensitive areas are equipped with the double-glazed wall. Areas with lower acoustic requirements can be built with the single-pane glass wall. The walls can be directly adjacent to each other. This creates economical room structures that are precisely tailored to the user.

Glass wall medium sound insulation Decorative element — Decorative element single glazing

Glass decoration / film wrapping — Glass decoration / foiling

Glass-only wall with solid wall elements and foiling

The glass-only wall can be combined with solid wall elements. Alternatively, glass can be laminated. For the double-glazed wall, we also supply decorative elements for installation in the space between the panes. The surfaces of these decorative elements can be customized.

The pure glass wall can be combined with solid wall elements. Alternatively, the glass can also be laminated. For the double-glazed wall, we also supply decorative elements for installation in the space between the panes. The surfaces of these decorative

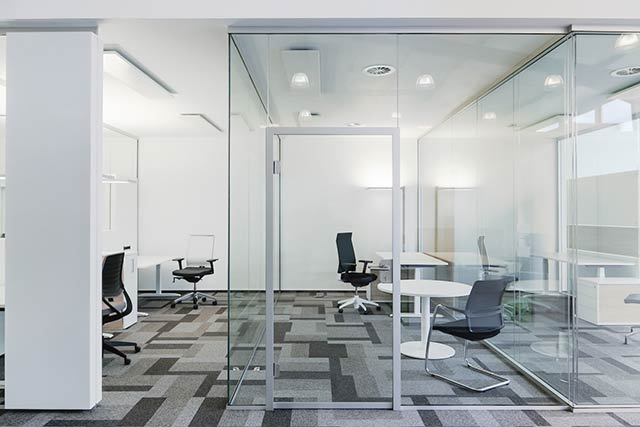

Just as solid wall elements can be integrated into the system, acoustic elements can also be installed. In combination with suitable absorber shells, the glass wall becomes an important medium for room acoustics. You can find details on this under the heading Acoustics.

space efficiency

Highly transparent all-glass walls help to optimize the use of office space. Rooms appear larger. Central zones can be illuminated and better utilized.

roomacoustic

The soloVETRO glass wall provides good sound insulation. On request, we can integrate high-performance absorbers to reduce the reverberation time.

Construction

The all-glass wall is assembled from frameless glass elements. The butt joints are dry-glued. Corners are glass to glass connections.
